Customizing the IDEA Settings Dialog

Hi Team,

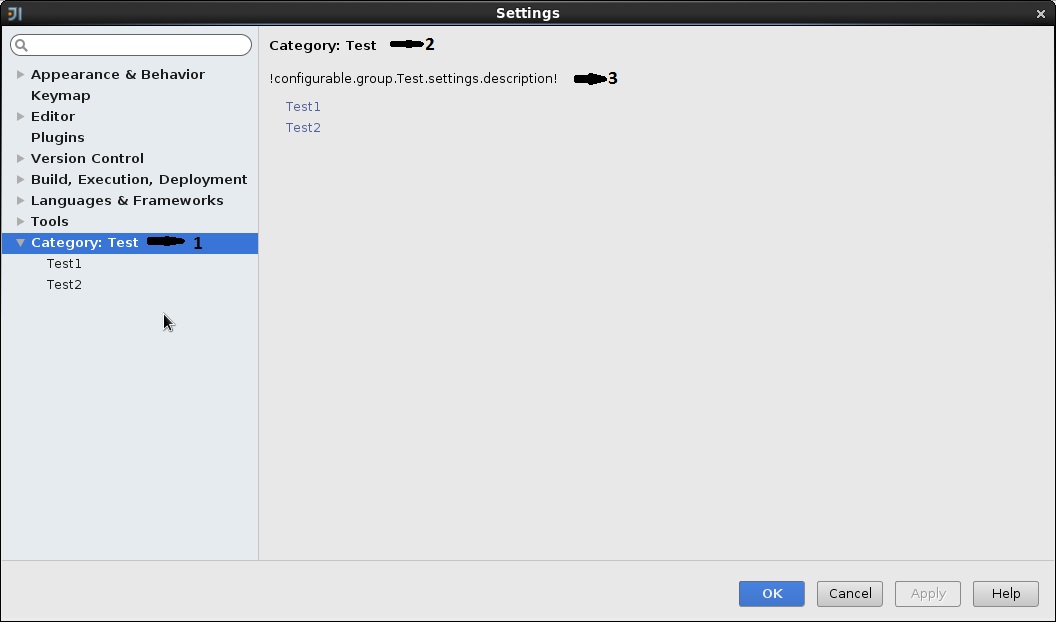

   I implemented "Configurable" class as described in https://confluence.jetbrains.com/display/IDEADEV/Customizing+the+IDEA+Settings+Dialog page. In setting dialog my nodes displays like this;
My "plugin.xml" configurations

<extensions defaultExtensionNs="com.intellij">
    <applicationConfigurable groupId="Test"  displayName="Test1" id="test1" instance="com.test.Test1Setting" />
    <applicationConfigurable groupId="Test" displayName="Test2" id="test2" instance="com.test.Test2Setting"/>
  </extensions>

How should I resolve issues marked on the image;

  1. How to remove "Category" in both number 1 and 2
  2. Reason for the number 3 issue and how can I resolve it.


Thanks,
Navin

7 comments
Comment actions Permalink

You can't define your own top-level groups at this time. You need to specify one of the existing group names, as described in the javadoc for the ConfigurableEP class, or leave out the groupId entirely.

0
Comment actions Permalink

For my plugin I need to define top level group. Is there anyway that I can achieve that capability?

Test

>Test1

>Test2

0
Comment actions Permalink

Why do you think you need to define a top-level group? What kind of settings do you want to provide?


0
Comment actions Permalink

I want to provide some plugin specific settings and configurations. I've done same thing in Eclipse and Im trying to do same thing here in IntelliJ as well, thats why.

0
Comment actions Permalink

Why does it have to be a top-level group, and not nested under one of the existing top-level groups (or "Other settings", which is where it will be placed if you do not specify a group ID when you register the configurable)?

0
Comment actions Permalink

In Eclipse plugin I created as top level group thats why. I'm trying to integrate same behaviour in IntelliJ. If its not possible is there any way I can reolve issue 3 marked on the image?

0
Comment actions Permalink

If you create your own configurable which is not top-level (and, if needed, use the Configurable.Parent interface to create a group of configurables under your node), you'll have full control over the contents displayed in your configurable, and none of the issues on your screenshot will arise.

1
