Layout problem:

I get classes to overlap if there is 1 class that is extended by many, and
another one which is extended, the extending classes might override.

In my case one class is extended by 6 classes and the other one is extended
by one class.

Also, I noticed that the bird's eye doesn't update unless I close and reopen
it.

Amnon

"Martin Schmid" <til77@hotmail.com> wrote in message
news:apav45$lls$1@is.intellij.net...

use on your own risk
tested on #665

>

changes
-bugfixes
-internal changes

>

http://www.intellij.org/twiki/bin/view/Main/SimpleUML

>
>

Martin



0
Comment actions Permalink

hi,

"Amnon I. Govrin" <agovrin@freshwater.com> schrieb im Newsbeitrag news:apbp4b$lcm$1@is.intellij.net...

Layout problem:

I get classes to overlap if there is 1 class that is extended by many, and
another one which is extended, the extending classes might override.

In my case one class is extended by 6 classes and the other one is extended
by one class.


Can you send me a screenshot (Classnames should be readable)? (til77@hotmail.com)

Also, I noticed that the bird's eye doesn't update unless I close and reopen
it.


Bird's eye should update when you are idle for 2 seconds.
What's the state of the ToolWindow? (floating, docked, ...)

thanks,
Martin


0
Comment actions Permalink

When there are no projects open, I'm getting this exception

2002-10-25 13:38:37,823 ERROR - ellij.project.impl.ProjectImpl -
2002-10-25 13:38:37,823 ERROR - ellij.project.impl.ProjectImpl -
IntelliJ IDEA 3.0 Build #666
2002-10-25 13:38:37,823 ERROR - ellij.project.impl.ProjectImpl -
JDK: 1.4.1_01
2002-10-25 13:38:37,823 ERROR - ellij.project.impl.ProjectImpl -
VM: Java HotSpot(TM) Client VM
2002-10-25 13:38:37,823 ERROR - ellij.project.impl.ProjectImpl -
Vendor: Sun Microsystems Inc.
2002-10-25 13:38:37,823 ERROR - ellij.project.impl.ProjectImpl -
OS: Windows XP
2002-10-25 13:38:37,823 ERROR - ellij.project.impl.ProjectImpl -
Last Action: EditFileTemplates
2002-10-25 13:38:37,823 ERROR - ellij.project.impl.ProjectImpl -
java.lang.NullPointerException
at
net.trustx.myde.plugin.UMLToolWindowPlugin.writeExternal(UMLToolWindowPlugin
.java:827)
at com.intellij.openapi.components.a.a.a(a.java:119)
at com.intellij.openapi.project.b.c.a(c.java:200)
at com.intellij.openapi.project.b.o.writeExternal(o.java:104)
at com.intellij.openapi.components.a.a.a(a.java:119)
at com.intellij.openapi.application.b.e.d(e.java:46)
at com.intellij.openapi.application.b.e.saveSettings(e.java:227)
at com.intellij.ide.cn.b(cn.java:69)
at com.intellij.ide.cn.b(cn.java:86)
at com.intellij.ide.cq.run(cq.java:5)
at com.intellij.util.Alarm$1.run(Alarm.java:5)
at com.intellij.util.Alarm$2.run(Alarm.java:13)
at java.awt.event.InvocationEvent.dispatch(InvocationEvent.java:178)
at java.awt.EventQueue.dispatchEvent(EventQueue.java:448)
at com.intellij.ide.p.a(p.java:65)
at com.intellij.ide.p.dispatchEvent(p.java:25)
at
java.awt.EventDispatchThread.pumpOneEventForHierarchy(EventDispatchThread.ja
va:197)
at
java.awt.EventDispatchThread.pumpEventsForHierarchy(EventDispatchThread.java
:150)
at java.awt.EventDispatchThread.pumpEvents(EventDispatchThread.java:144)
at java.awt.EventDispatchThread.pumpEvents(EventDispatchThread.java:136)
at java.awt.EventDispatchThread.run(EventDispatchThread.java:99)


"Martin Schmid" <til77@hotmail.com> wrote in message
news:apav45$lls$1@is.intellij.net...

use on your own risk
tested on #665

>

changes
-bugfixes
-internal changes

>

http://www.intellij.org/twiki/bin/view/Main/SimpleUML

>
>

Martin




0
Comment actions Permalink

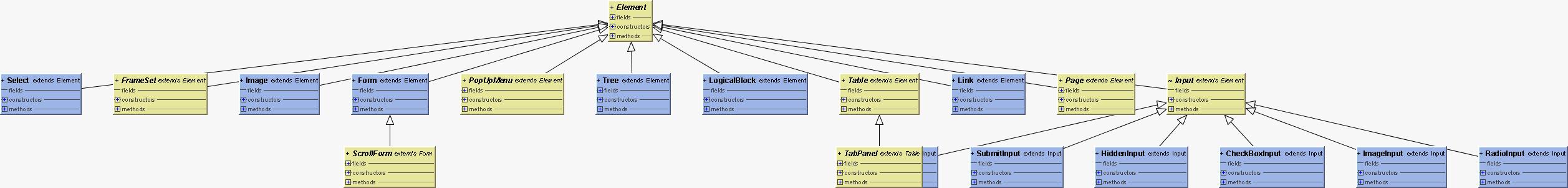

Attached is a screenshot after automatic layout.

You are right, Bird's eye updates after a couple of seconds. May be that
could be configurable?

Anyway, it is a great extension.

Amnon

"Martin Schmid" <til77@hotmail.com> wrote in message
news:apbse2$peu$1@is.intellij.net...

hi,

>

"Amnon I. Govrin" <agovrin@freshwater.com> schrieb im Newsbeitrag

news:apbp4b$lcm$1@is.intellij.net...

Layout problem:

>

I get classes to overlap if there is 1 class that is extended by many,

and

another one which is extended, the extending classes might override.

>

In my case one class is extended by 6 classes and the other one is

extended

by one class.

>

Can you send me a screenshot (Classnames should be readable)?

(til77@hotmail.com)
>

Also, I noticed that the bird's eye doesn't update unless I close and

reopen

it.

>

Bird's eye should update when you are idle for 2 seconds.
What's the state of the ToolWindow? (floating, docked, ...)

>

thanks,
Martin

>
>





Attachment(s):
0
Comment actions Permalink

hi,

I get classes to overlap if there is 1 class that is extended by many, and
another one which is extended, the extending classes might override.

In my case one class is extended by 6 classes and the other one is extended
by one class.


Found a Testcase...
should be fixed in build 11

thanks,
Martin

0
Comment actions Permalink

hi,

Attached is a screenshot after automatic layout.


this should be fixed in build 11

You are right, Bird's eye updates after a couple of seconds. May be that
could be configurable?


I make it configurable in the next build.

thanks,
Martin
