Newbie Student - Connect PHPStorm to a WAMP database Follow

Created May 06, 2014 15:58

I have a test MySQL database created in via WAMP/phpmyadmin on localhost:8080. It works, and I can access it via phpmyadmin. Now I want to connect to it from PHPStorm. Heres what I've done:

I have followed the instructions and filled in the info on the DataSources and Drivers to the best of my knowledge.

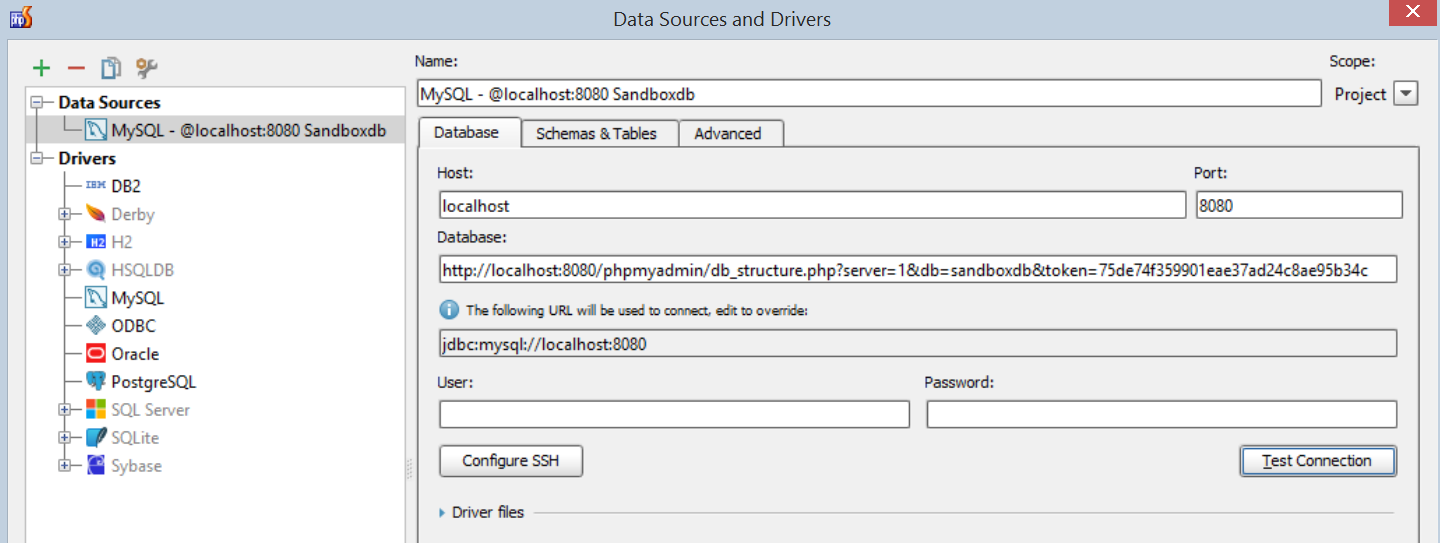

I did a drag and drop of the database name from myphpadmin Databases screen to the Database: box, which put the address http://localhost:8080/phpmyadmin/db_structure.php?token= big long string =sandboxdb in the form.
I selected MYSQL and downloaded the jdbc drivers, which now show up in the driver files box

When I click OK, I get "connecting to database... " and a progress indicator, but no connection.

It seems to be looking for a password, but I have not set up any passwords for the database.

I'm a student starting an intro to databases course where I'll be learning SQL and PHP. I just need a sandbox to play with. Can someone help me to get this setup?

10 comments

Andriy Bazanov

Created May 06, 2014 22:15

Hi there,

1) Please provide screenshot of your database settings (in PhpStorm).

2)

I did a drag and drop of the database name from myphpadmin Databases screen to the Database: box, which put the address
http://localhost:8080/phpmyadmin/db_structure.php?token= big long string =sandboxdb in the form.

This makes no sense for me, at all. Why database name should be an URL of your PhpMyAdmin web page??

3) Misc links:

http://blog.jetbrains.com/webide/2012/11/sql-support-and-database-tools/ -- old version .. but still OK for a newbie to see basics (it has an example of configuring MySQL connection)
http://blog.jetbrains.com/phpstorm/2013/10/database-tools-and-sql-editor-changes-in-phpstorm-7/
http://www.jetbrains.com/phpstorm/webhelp/configuring-a-db-data-source.html
http://blog.jetbrains.com/phpstorm/?s=webinar+recording
http://confluence.jetbrains.com/display/PhpStorm/Installing+and+Configuring+XAMPP+with+PhpStorm+IDE#InstallingandConfiguringXAMPPwithPhpStormIDE-IntegratingtheMySQLserver -- this is for XAMPP but Database toll window is the same for any stack.

Wayne Cordrey

Created May 06, 2014 22:50

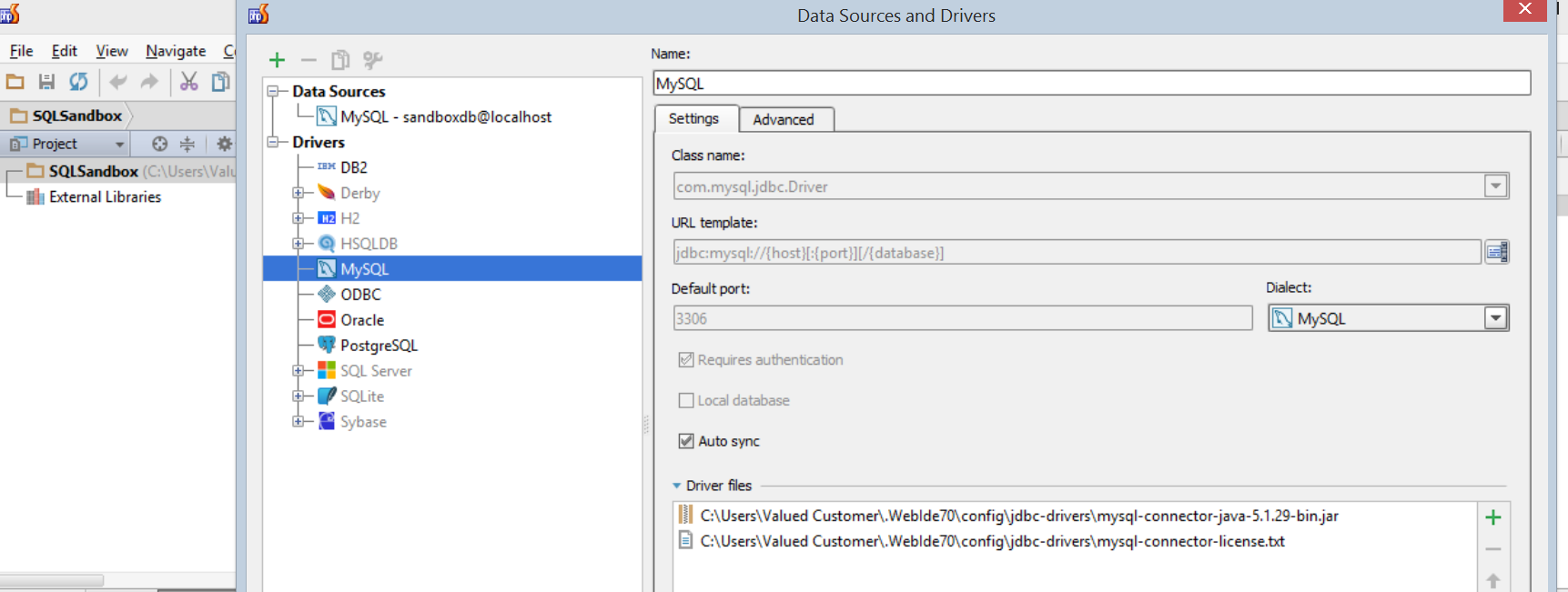

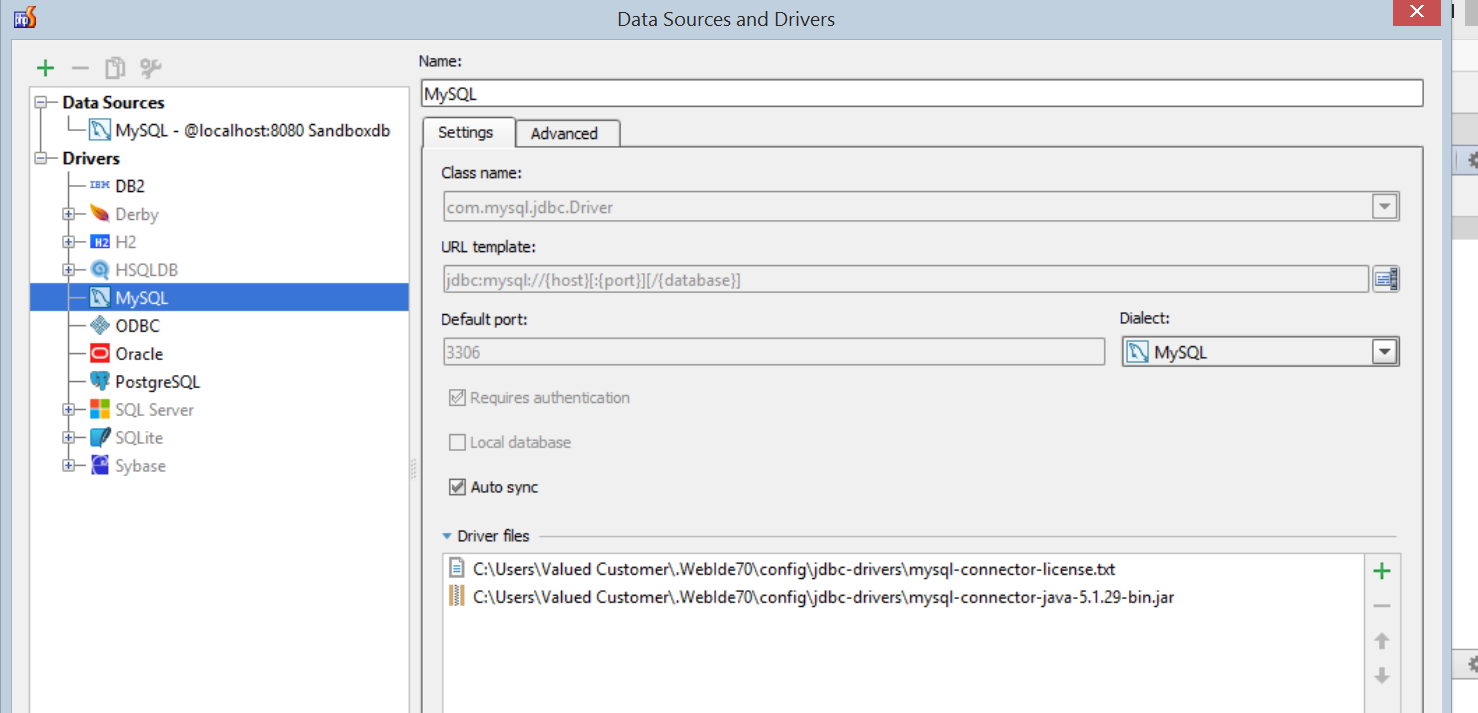

Thanks for the reply. I'm working on the links you provided now, starting with the newbie one. Here are some screenshots from PHPStorm:

And finally;

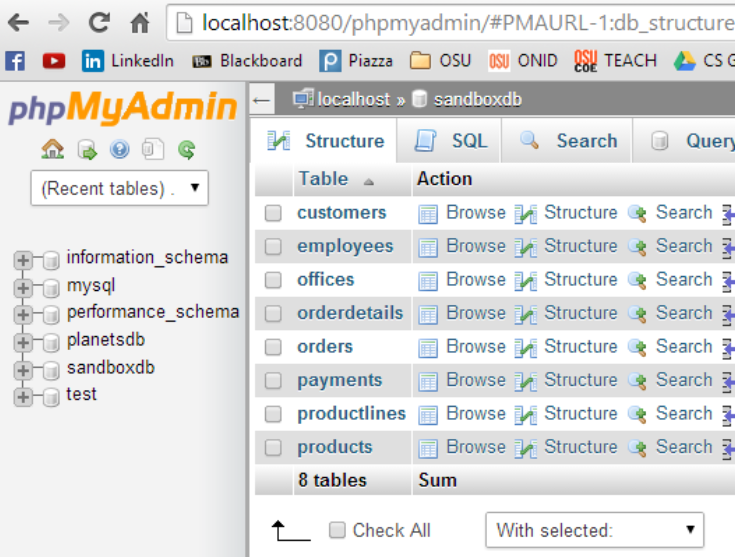

I just dragged and dropped the sandbox db on the left to the PHPStorm database box in the first image.

Thanks again for your help.

Andriy Bazanov

Created May 06, 2014 22:57

The "Database" field should be your database NAME -- "sandboxdb" as I understand (as per 3rd screenshot).

And port should be your MySQL port (usually "3306") and not your web server port (8080).

Wayne Cordrey

Created May 07, 2014 00:08

Thanks for the corrections- I did these, and also updated my.ini file to include my password. I get this error message:

Connection to MySQL - @localhost:8080 Sandboxdb failed
java.sql.SQLException: Access denied for user 'wfws'@'localhost' (using password: YES)
  at com.mysql.jdbc.SQLError.createSQLException(SQLError.java:1086)
  at com.mysql.jdbc.MysqlIO.checkErrorPacket(MysqlIO.java:4237)
  at com.mysql.jdbc.MysqlIO.checkErrorPacket(MysqlIO.java:4169)
  at com.mysql.jdbc.MysqlIO.checkErrorPacket(MysqlIO.java:928)
  at com.mysql.jdbc.MysqlIO.proceedHandshakeWithPluggableAuthentication(MysqlIO.java:1750)
  at com.mysql.jdbc.MysqlIO.doHandshake(MysqlIO.java:1290)
  at com.mysql.jdbc.ConnectionImpl.coreConnect(ConnectionImpl.java:2502)
  at com.mysql.jdbc.ConnectionImpl.connectOneTryOnly(ConnectionImpl.java:2535)
  at com.mysql.jdbc.ConnectionImpl.createNewIO(ConnectionImpl.java:2320)
  at com.mysql.jdbc.ConnectionImpl.<init>(ConnectionImpl.java:834)
  at com.mysql.jdbc.JDBC4Connection.<init>(JDBC4Connection.java:46)
  at sun.reflect.NativeConstructorAccessorImpl.newInstance0(Native Method)
  at sun.reflect.NativeConstructorAccessorImpl.newInstance(NativeConstructorAccessorImpl.java:57)
  at sun.reflect.DelegatingConstructorAccessorImpl.newInstance(DelegatingConstructorAccessorImpl.java:45)
  at java.lang.reflect.Constructor.newInstance(Constructor.java:526)
  at com.mysql.jdbc.Util.handleNewInstance(Util.java:411)
  at com.mysql.jdbc.ConnectionImpl.getInstance(ConnectionImpl.java:416)
  at com.mysql.jdbc.NonRegisteringDriver.connect(NonRegisteringDriver.java:347)
  at com.intellij.persistence.jdbc.impl.RemoteDriverImpl.connect(RemoteDriverImpl.java:27)
  at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
  at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:57)
  at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
  at java.lang.reflect.Method.invoke(Method.java:606)
  at sun.rmi.server.UnicastServerRef.dispatch(UnicastServerRef.java:322)
  at sun.rmi.transport.Transport$1.run(Transport.java:177)
  at sun.rmi.transport.Transport$1.run(Transport.java:174)
  at java.security.AccessController.doPrivileged(Native Method)
  at sun.rmi.transport.Transport.serviceCall(Transport.java:173)
  at sun.rmi.transport.tcp.TCPTransport.handleMessages(TCPTransport.java:556)
  at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.run0(TCPTransport.java:811)
  at sun.rmi.transport.tcp.TCPTransport$ConnectionHandler.run(TCPTransport.java:670)
  at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1145)
  at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:615)
  at java.lang.Thread.run(Thread.java:724)
  at sun.rmi.transport.StreamRemoteCall.exceptionReceivedFromServer(StreamRemoteCall.java:275)
  at sun.rmi.transport.StreamRemoteCall.executeCall(StreamRemoteCall.java:252)
  at sun.rmi.server.UnicastRef.invoke(UnicastRef.java:161)
  at java.rmi.server.RemoteObjectInvocationHandler.invokeRemoteMethod(RemoteObjectInvocationHandler.java:194)
  at java.rmi.server.RemoteObjectInvocationHandler.invoke(RemoteObjectInvocationHandler.java:148)
  at com.sun.proxy.$Proxy79.connect(Unknown Source)
  at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)
  at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:57)
  at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
  at java.lang.reflect.Method.invoke(Method.java:606)
  at com.intellij.execution.rmi.RemoteUtil$RemoteInvocationHandler.invoke(RemoteUtil.java:214)
  at com.sun.proxy.$Proxy80.connect(Unknown Source)
  at com.intellij.javaee.module.view.dataSource.LocalDataSource.getConnection(LocalDataSource.java:241)
  at com.intellij.javaee.module.view.dataSource.LocalDataSource.getConnection(LocalDataSource.java:217)
  at com.intellij.javaee.dataSource.DataSource.getConnection(DataSource.java:319)
  at com.intellij.javaee.dataSource.DataSource.performJdbcOperation(DataSource.java:363)
  at com.intellij.javaee.dataSource.AbstractDataSource.refreshMetaData(AbstractDataSource.java:32)
  at com.intellij.javaee.module.view.dataSource.DataSourceUiUtil$2.run(DataSourceUiUtil.java:177)
  at com.intellij.openapi.progress.impl.ProgressManagerImpl$TaskRunnable.run(ProgressManagerImpl.java:464)
  at com.intellij.openapi.progress.impl.ProgressManagerImpl$2.run(ProgressManagerImpl.java:178)
  at com.intellij.openapi.progress.ProgressManager.executeProcessUnderProgress(ProgressManager.java:209)
  at com.intellij.openapi.progress.impl.ProgressManagerImpl.executeProcessUnderProgress(ProgressManagerImpl.java:212)
  at com.intellij.openapi.progress.impl.ProgressManagerImpl.runProcess(ProgressManagerImpl.java:171)
  at com.intellij.openapi.progress.impl.ProgressManagerImpl$8.run(ProgressManagerImpl.java:373)
  at com.intellij.openapi.application.impl.ApplicationImpl$8.run(ApplicationImpl.java:420)
  at java.util.concurrent.Executors$RunnableAdapter.call(Executors.java:471)
  at java.util.concurrent.FutureTask.run(FutureTask.java:262)
  at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1145)
  at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:615)
  at java.lang.Thread.run(Thread.java:724)
  at com.intellij.openapi.application.impl.ApplicationImpl$1$1.run(ApplicationImpl.java:150)

Andriy Bazanov

Created May 07, 2014 00:47

You did not.

Connection to MySQL - @localhost:8080 Sandboxdb failed

Quoting myself:

And port should be your MySQL port (usually "3306") and NOT your web server port (8080).

Either leave it empty or use correct port number

Wayne Cordrey

Created May 07, 2014 01:25

Gah! Sorry. I fixed that error, and it still isn't working. Do you need to see the error message?

Andriy Bazanov

Created May 07, 2014 01:28

Yes.

Screenshot (the same as 1st one) and first few lines of the exception.

But before that -- check DB Name spelling -- make sure it uses the same letter case.

Wayne Cordrey

Created May 07, 2014 01:49

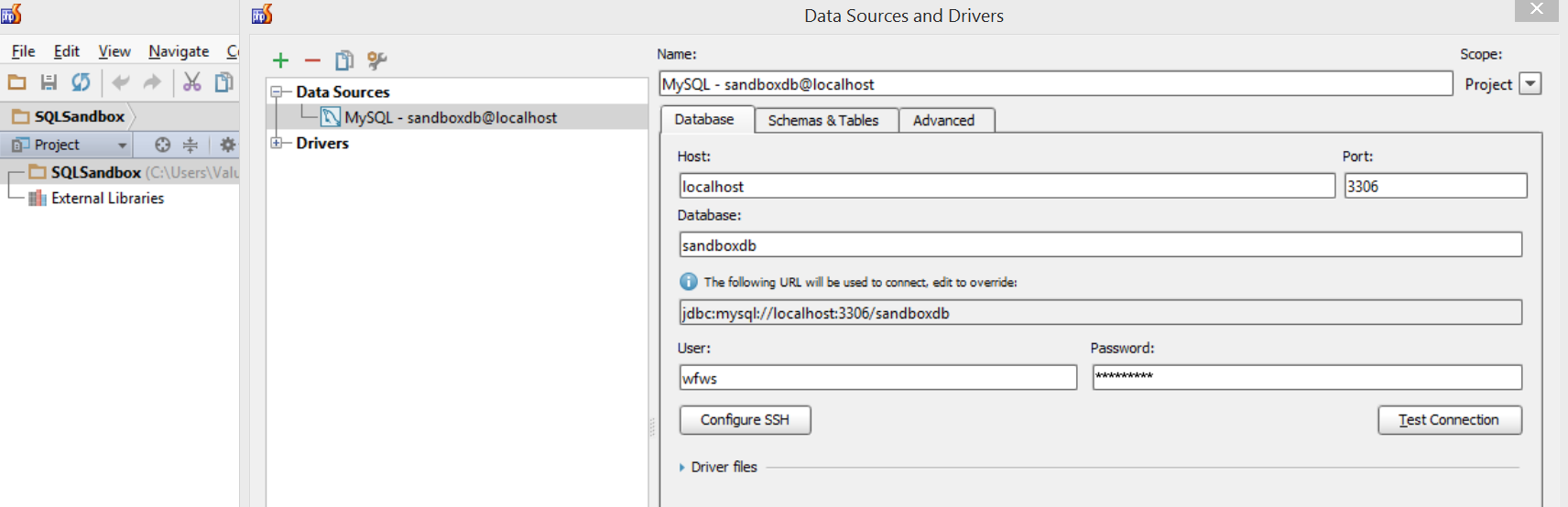

OK, here is the current set of screens:

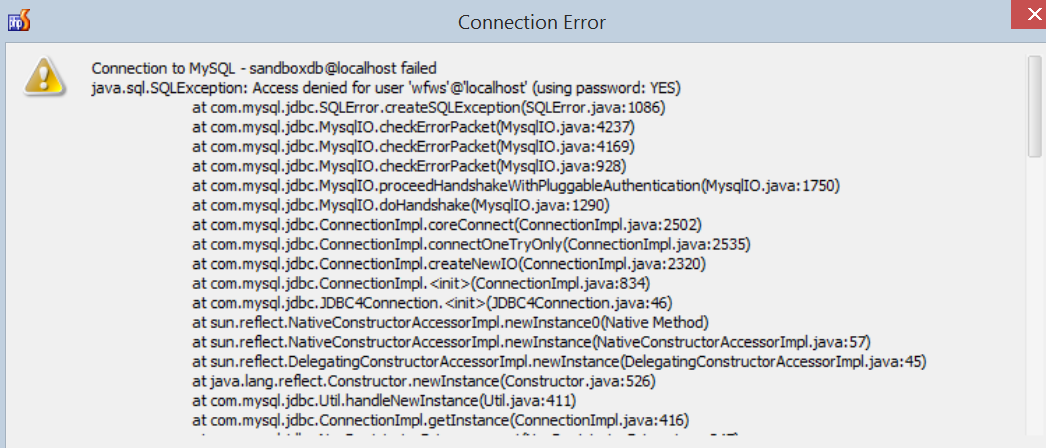

Here is the error screen:

I did verify the correct spelling and capitalization (there is none) for the database name directly from phpMyAdmin database page.

Andriy Bazanov

Created May 07, 2014 02:01

In PhpMyAdmin -- check users/access rights section. Check how your "wfws" user is defined -- what host(s) it can access from.

Right now it sounds like:
1) wrong username/password
2) wrong host (connection is not allowed for "localhost") -- try "127.0.0.1" instead

Also check Windows firewall (if MySQL is allowed to receive connection on TCP 3306 port) -- PHPMyAdmin could be accessing DB using different transport.

Wayne Cordrey

Created May 07, 2014 02:31

GOT IT!  It was my user name.  I did not have it in myPHPadmin list of users.  I cha
nged the name to root, and presto, she connected.

Thanks so much for your patience. I imagine after a few hundred of these connection issues that have very little to do with your software, it might become a little bit exasperating to step yet another person thru this.

Now I can go and enjoy learning PHPStorm and my Intro to databases course.

Thanks again!
Wayne from White Salmon
